• Neuf

Gigabyte 2U 6NG221Z30MR-00 redondant AMD G221-Z30 (rev. A00)

Gigabyte
Quantité

6NG221Z30MR-00

Contacter nous pour avoir le délai de livraison

  • Supports up to 2 x double slot GPU cards
  • AMD EPYC™ 7002 and 7001 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
  • 1 x Dedicated management port
  • 16 x 2.5" hot-swappable HDD/SSD bays
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • 4 x PCIe Gen3 expansion slots
  • 2 x PCIe Gen3 expansion slots for RAID and LAN cards
  • Aspeed® AST2500 remote management controller
  • Dual 1200W 80 PLUS Platinum redundant power supply
  • Dimensions (WxHxD, mm)
    2‎U
    430 x 87 x 710 mm
  • Motherboard
  • CPU
    AMD EPYC™ 7002 series processor family
    Single processor, 7nm, Socket SP3
    Up to 64-core, 128 threads per processor
    TDP up to 225W, cTDP up to 240W

    Conditional support 280W

    Compatible with AMD EPYC™ 7001 series processor family
  • Chipset
    System on Chip
  • Memory
    1‎6 x DIMM slots
    DDR4 memory supported only
    8-Channel memory architecture
    RDIMM modules up to 64GB supported
    LRDIMM modules up to 128GB supported
    Memory speed: Up to 3200*/ 2933 MHz

    - Note:
    * Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
  • LAN
    2‎ x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
    1 x 10/100/1000 management LAN
  • Video
    Integrated in Aspeed® AST2500
    2D Video Graphic Adapter with PCIe bus interface
    1920x1200@60Hz 32bpp
  • Audio
    -
  • Storage
    1‎6 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • SAS
    -
  • RAID
    -
  • Peripheral Drives
    -
  • Expansion Slots
    Riser Card CRS2010:
    - 1 x PCIe x16 slots (Gen3 x16 or x8), Full height full-length
    - 1 x PCIe x8 slots (Gen3 x8 or x0), Full height half-length

    Riser Card CRS2012:
    - 1 x PCIe x8 slots (Gen3 x8 or x0), Full height half-length
    - 1 x PCIe x16 slots (Gen3 x16 or x8), Full height full-length

    2 x PCIe x16 slots (Gen3 x8), Low profile half-length for RAID and LAN HBAs

    1 x M.2 slot:
    - M-key
    - PCIe Gen3 x4
    - Supports NGFF-2242/2260/2280 cards
  • Internal I/O
    1‎ x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    4 x SlimSAS connectors
    1 x M.2 slot
    2 x CPU fan headers
    5 x System fan headers
    1 x USB 3.0 header
    1 x USB 2.0 header
    1 x COM_2 header
    1 x TPM header
    1 x Front panel header
    2 x LAN activity LED
    1 x HDD back plane board header
    1 x PMBus connector
    1 x IPMB connector
    1 x Clear CMOS jumper
    1 x BIOS recovery jumper
    1 x Buzzer
  • Front I/O
    1‎ x Power button with LED
    1 x ID button with LED
    1 x Reset button
    1 x System status LED
    1 x HDD activity LED
    2 x LAN activity LEDs
  • Rear I/O
    2‎ x USB 3.0
    2 x USB 2.0
    1 x VGA
    1 x COM_1
    2 x SFP+
    1 x MLAN
    1 x ID button with LED
  • Backplane I/O
    Backplane P/N: 9CBP20O1NR-00
    Speed and bandwidth:
    SAS 12Gb/s, SATA 6Gb/s
  • TPM
    1‎ x TPM header with LPC interface
    Optional TPM2.0 kit: CTM000
  • Power Supply
    2‎ x 1200W redundant PSUs
    80 PLUS Platinum

    AC Input:
    - 100-240V~/ 12-7A, 50-60Hz
    DC Input:
    - 240Vdc/ 6A

    DC Output:
    - Max 1000W/ 100-240V~
    +12V/ 80.5A
    +12Vsb/ 3A
    - Max 1200W/ 200-240V~ or 240Vdc input
    +12V/ 97A
    +12Vsb/ 3A

    NOTE:
    * Select 1600W power supply if using 280W CPU with full loading configuration
  • System Management
    Aspeed® AST2500 management controller
    AMI MegaRAC SP-X Solution Web interface

    • Dashboard
    • JAVA Based Serial Over LAN
    • HTML5 KVM
    • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
    • Sensor Reading History Data
    • FRU Information
    • SEL Log in Linear Storage / Circular Storage Policy
    • Hardware Inventory
    • Fan Profile
    • System Firewall
    • Power Consumption
    • Power Control
    • LDAP / AD / RADIUS Support
    • Backup & Restore Configuration
    • Remote BIOS/BMC/CPLD Update
    • Event Log Filter
    • User Management
    • Media Redirection Settings
    • PAM Order Settings
    • SSL Settings
    • SMTP Settings
  • OS Compatibility
    For AMD EPYC™ 7002 series processor family

    Windows Server 2016 ( X2APIC/256T not supported)
    Windows Server 2019

    Red Hat Enterprise Linux 7.6 ( x64) or later
    Red Hat Enterprise Linux 8.0 ( x64) or later

    SUSE Linux Enterprise Server 12 SP4 ( x64) or later
    SUSE Linux Enterprise Server 15 SP1 ( x64) or later

    Ubuntu 16.04.6 LTS (x64) or later
    Ubuntu 18.04.3 LTS (x64) or later
    Ubuntu 20.04 LTS or later

    VMware ESXi 6.5 EP15 or later
    VMware ESXi 6.7 Update3 or later
    VMware ESXi 7.0 or later

    Citrix Hypervisor 8.1.0 or later

    For AMD EPYC™ 7001 series processor family

    Windows Server 2012 R2 with Update
    Windows Server 2016

    Red Hat Enterprise Linux 7.4 (x64) or later
    Red Hat Enterprise Linux 8.0 (x64) or later

    SUSE Linux Enterprise Server 11.4 (x64) or later
    SUSE Linux Enterprise Server 12.3 (x64) or later
    SUSE Linux Enterprise Server 15 (x64) or later

    Ubuntu 16.04 LTS (x64) or later
    Ubuntu 18.04 LTS (x64) or later
    Ubuntu 20.04 LTS or later

    VMware ESXi 6.5 Update1 or later
    VMware ESXi 6.7 or later
    VMware ESXi 7.0 or later

    Citrix Xenserver 7.1.0 CU2 or later
    Citrix Xenserver 7.4.0 or later
    Citrix Hypervisor 8.0.0 or later
  • Weight
    2‎2 kg (barebone)
  • System Fans
    4‎ x 80x80x38mm (16300rpm)
  • Operating Properties
    Operating temperature: 10°C to 35°C
    Operating humidity: 8%-80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20%-95% (non-condensing)
  • Packaging Dimensions
    9‎82 x 588 x 268 (mm)
  • Packaging Content
    1‎ x G221-Z30 system
    1 x CPU heatsink
    1 x Rail kit
  • Part Numbers
    Rackmount: 6NG221Z30MR-00-A*
    Motherboard: 9MZ31AR0NR-00-2*
    CPU heatsink: 25ST1-15320D-J1R
    CPU heatsink for 280W CPU: 25ST1-44320G-A0R ( optional)
    Back plane board: 9CBP20O1NR-00
    Fan module: 25ST2-883829-D0R
    Power supply: 25EP0-212002-F3S
    Rail Kit: 25HB2-3A6804-I0R

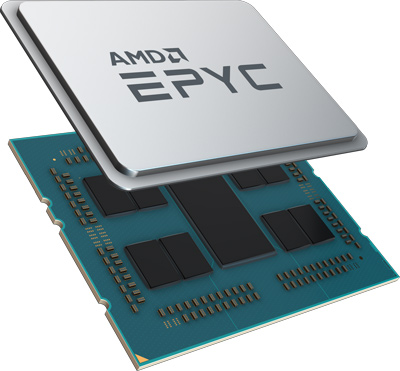

AMD EPYC™ 7002 Series Processor (Rome)


The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

  • Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
  • Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture
  • Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
  • Embedded security protection to help defend your CPU, applications, and data
Up to

2X PerformancePer Socket & IO Bandwidth

vs AMD EPYC Naples
Up to

4X Floating PointPer Socket

vs AMD EPYC Naples

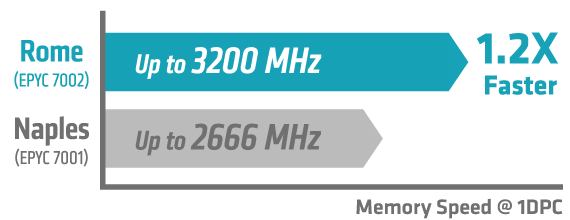

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

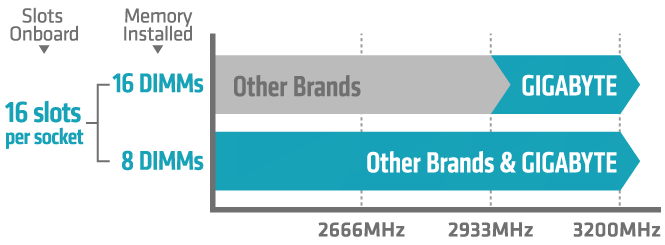

Get the Memory Performance Edge

3200Mhz Even at 2 DIMMS Per Channel

On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!

* Enabled via BIOS setting (“UMC Common Options” -> “DDR4 Common Options” -> Configure “Enforce POR” setting). Please follow product QVL. Please consult your GIGABYTE sales or technical representative for more information.

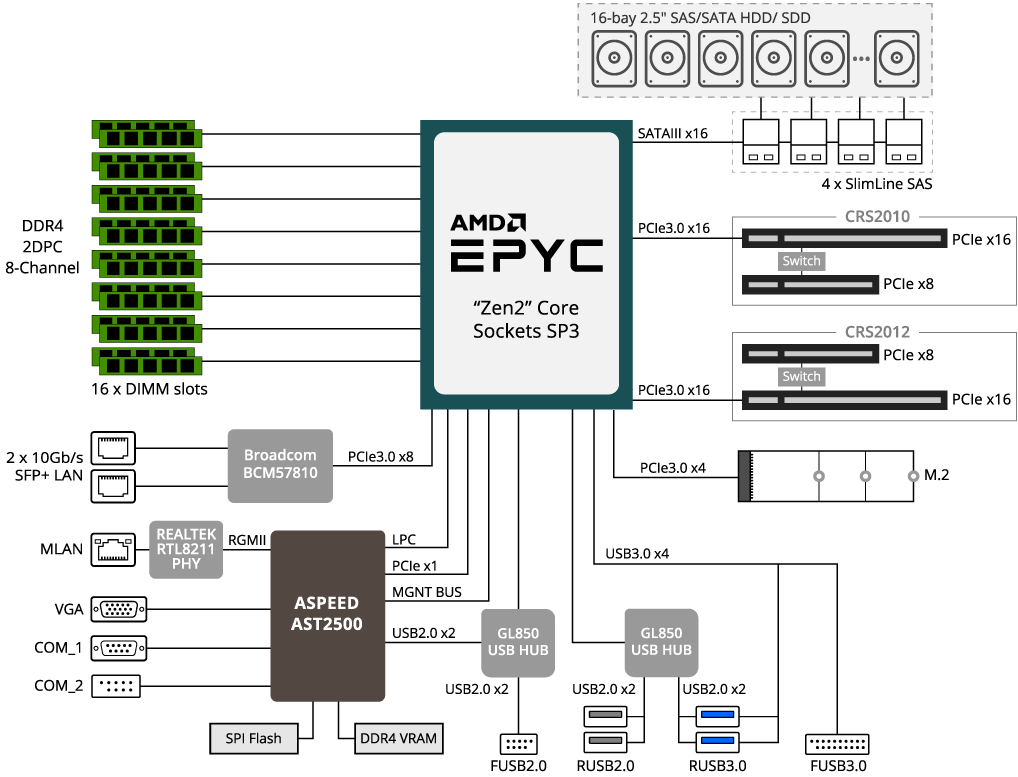

G221-Z30 System Block Diagram

6NG221Z30MR-00

Fiche technique

Socket de processeur (réceptable de processeur)
SP3
Alimentation redondante (RPS)
oui
Processeurs compatibles
AMD EPYC™ 7002 series
Nombre de DIMM mémoire
16
Nombre d'emplacement disque
16
Facteur de forme de châssis
2U
