Gigabyte 6NH242Z10MR-00 2U redondant AMD H242-Z10 (rev. 100)

Contacter nous pour avoir le délai de livraison
- Supports 5G network infrastructure
- 2U - 4 nodes rear access server system for Edge Computing
- Single AMD EPYC™ 7002 series processor family
- 4 x LGA 4094 sockets
- 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- 8 x 1Gb/s LAN ports (Intel® I350-AM2)
- 4 x 2.5" NVMe hot-swappable SSD bays
- 8 x M.2 with PCIe Gen3 x4 interface
- 8 x Low profile PCIe x16 expansion slots
- 4 x OCP 2.0 Gen3 x16 mezzanine slots
- Aspeed® AST2500 remote management controller
- 1200W 80 PLUS Platinum redundant PSU
-
Dimensions (WxHxD, mm)2U 4 Nodes - Rear access
440 x 87.5 x 475 -
MotherboardMZ12-HD0
-
CPUAMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Compatible with AMD EPYC™ 7001 series processor family -
SocketPer Node:
1 x LGA 4094
Total:
4 x LGA 4094
Socket SP3 -
ChipsetSystem on Chip
-
MemoryPer node:
8 x DIMM slots
Total:
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz -
LANPer node:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (1 x Intel® I350-AM2)
4 x Dedicated management ports -
VideoIntegrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM -
Audio-
-
StoragePer node:
1 x 2.5" NVMe hot-swappable SSD bays
Total:
4 x 2.5" NVMe hot-swappable SSD bays
All storage bays are compatible with SATA devices -
RAID-
-
Peripheral Drives-
-
Expansion SlotsPer node:
1 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus)
1 x Low profile half-length slots with PCIe x16 (Gen3 x16 bus)
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Total:
4 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus)
4 x Low profile half-length slots with PCIe x16 (Gen3 x16 bus)
4 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)
8 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device -
Internal I/OPer node:
2 x M.2 slot
1 x USB 3.0 header
1 x TPM header
1 x OCP 2.0 mezzanine slots
1 x Front panel header
1 x Back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper -
Front I/OPer node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x Reset button
Total:
4 x Power button with LED
4 x ID button with LED
4 x Status LED
4 x Reset button -
Rear I/OPer node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
4 x ID LEDs -
Backplane I/O4 x ports
Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s or PCIe Gen3 x4 per port -
TPM1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 -
Power Supply2 x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A -
System ManagementAspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
-
OS CompatibilityWindows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
"Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later Citrix Hypervisor 8.1.0 or later" Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later -
WeightNet Weight: 17.2 kg
Gross Weight: 28.9 kg -
System Fans3 x 80x80x38mm (16,300rpm)
1 x 40x40x28mm (25,000rpm) -
Operating PropertiesOperating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Ambient temperature limited to 30°C if using 280W CPU -
Packaging Dimensions857 x 670 x 280 mm
-
Packaging Content1 x H242-Z10
4 x CPU heatsinks
1 x Rail Kit -
Part NumbersBarebone package: 6NH242Z10MR-00
Spare parts:
- Motherboard: 9MZ12HD0NR-00
- Back plane board: 9CBPH043NR-00
- Rail kit: 25HB2-AA6107-K0R
- CPU heatsink: 25ST1-44320J-A0R
- Back plane board: 9CBPH043NR-00
- Fan module: 25ST2-44282D-D0R/ 25ST2-88382E-D0R
- Power Supply: 25EP0-212007-F3S

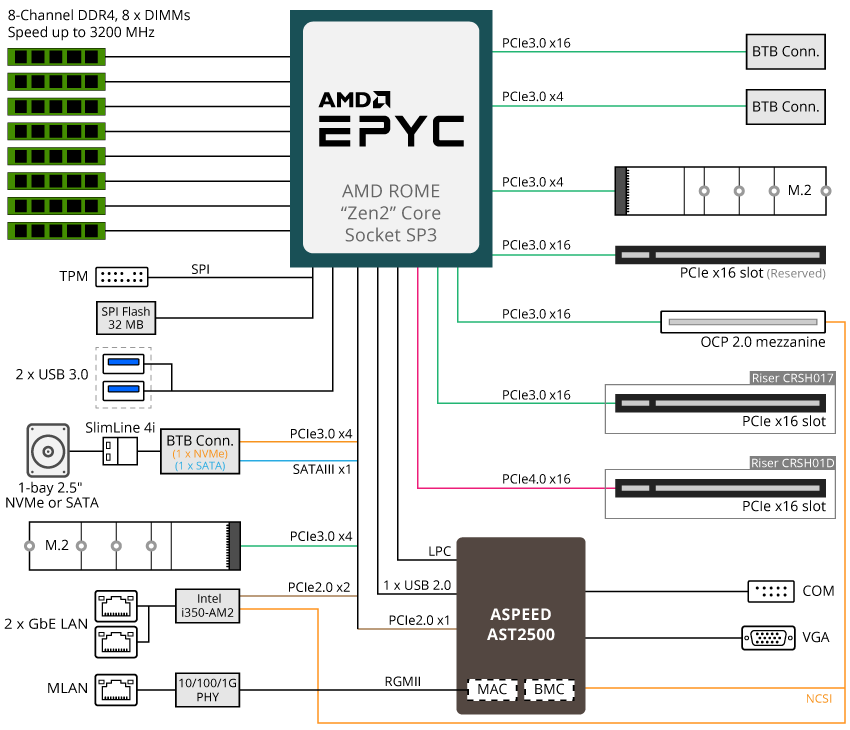

H242-Z10 System Block Diagram

6NH242Z10MR-00
Fiche technique
- Socket de processeur (réceptable de processeur)
- SP3
- Nombre de DIMM mémoire
- 8
- Nombre d'emplacement disque
- 1 x 2.5" NVMe
- Facteur de forme de châssis
- 2U
