Gigabyte 6NH252Z10MR-00 2U redondant AMD H252-Z10 (rev. 100)

Gigabyte
6NH252Z10MR-00

Contacter nous pour avoir le délai de livraison

  • 2U - 4 nodes rear access server system
  • Single AMD EPYC™ 7002 series processor family
  • 4 x LGA 4094 sockets
  • 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
  • 8 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 4 x Dedicated management ports
  • 1 x CMC global management port
  • 24 x 2.5" NVMe/SATA hot-swappable SSD bays
  • 8 x M.2 with PCIe Gen3 x4 interface
  • 8 x Low profile PCIe x16 expansion slots
  • 4 x OCP 2.0 Gen3 x16 mezzanine slots
  • Aspeed® AST2500 remote management controller
  • 2000W 80 PLUS Platinum redundant PSU
  • Dimensions (WxHxD, mm)
    2‎U 4 Nodes - Rear access
    440 x 87.5 x 650
  • Motherboard
    MZ12-HD0
  • CPU
    AMD EPYC™ 7002 series processor family
    Single processor, 7nm technology
    Up to 64-core, 128 threads per processor
    TDP up to 225W, cTDP up to 240W

    Conditional support 280W
    Non-supported NVMe devices if using 280W CPU

    Compatible with AMD EPYC™ 7001 series processor family
  • Socket
    Per Node:
    1 x LGA 4094
    Total:
    4 x LGA 4094
    Socket SP3
  • Chipset
    System on Chip
  • Memory
    Per node:
    8 x DIMM slots

    Total:
    32 x DIMM slots
    DDR4 memory supported only
    8-Channel memory architecture
    RDIMM modules up to 64GB supported
    LRDIMM modules up to 128GB supported
    Memory speed: Up to 3200 MHz
  • LAN
    Per node:
    2 x 1GbE LAN ports (1 x Intel® I350-AM2)
    1 x Dedicated management port

    Total:
    8 x 1GbE LAN ports (1 x Intel® I350-AM2)
    4 x Dedicated management ports
    1 x 10/100/1000 *CMC global management port

    *CMC: Chassis Management Controller, to monitor all status of computing nodes
  • Video
    Integrated in Aspeed® AST2500
    2D Video Graphic Adapter with PCIe bus interface
    1920x1200@60Hz 32bpp, DDR4 SDRAM

    Management chip on CMC board:
    Integrated in Aspeed® AST2520A2-GP
  • Audio
    -
  • Storage
    Per node:
    6 x 2.5" NVMe/SATA hot-swappable SSD bays

    Total:
    24 x 2.5" NVMe/SATA hot-swappable SSD bays

    All storage bays are compatible with SATA devices
  • RAID
    -
  • Peripheral Drives
    -
  • Expansion Slots
    Per node:
    1 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus)
    1 x Low profile half-length slots with PCIe x16 (Gen3 x16 bus)
    1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)

    2 x M.2 slots:
    - M-key
    - PCIe Gen3 x4
    - Supports NGFF-2242/2260/2280/22110 cards
    - CPU TDP is limited to 155W if using M.2 device

    Total:
    4 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus)
    4 x Low profile half-length slots with PCIe x16 (Gen3 x16 bus)
    4 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)

    8 x M.2 slots:
    - M-key
    - PCIe Gen3 x4
    - Supports NGFF-2242/2260/2280/22110 cards
    - CPU TDP is limited to 155W if using M.2 device
  • Internal I/O
    Per node:
    2 x M.2 slot
    1 x USB 3.0 header
    1 x TPM header
    1 x OCP 2.0 mezzanine slots
    1 x Front panel header
    1 x Back plane board header
    1 x IPMB connector
    1 x Clear CMOS jumper
    1 x BIOS recovery jumper
  • Front I/O
    Per node:
    1 x Power button with LED
    1 x ID button with LED
    1 x Status LED

    Total:
    4 x Power button with LED
    4 x ID button with LED
    4 x Status LED
    *1 x CMC status LED

    *Only one CMC status LED per system
  • Rear I/O
    Per node:
    2 x USB 3.0
    1 x VGA
    2 x RJ45
    1 x MLAN
    1 x ID LED

    Total:
    8 x USB 3.0
    4 x VGA
    8 x RJ45
    4 x MLAN
    4 x ID LEDs
    *1 x CMC global management port

    *Only one CMC global management port per system
  • Backplane I/O
    2‎4 x ports
    Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s or PCIe Gen3 x4 per port
  • TPM
    1‎ x TPM header with SPI interface
    Optional TPM2.0 kit: CTM010
  • Power Supply
    2‎ x 2000W redundant PSUs
    80 PLUS Platinum

    AC Input:
    - 100-127V~/ 12A, 47-63Hz
    - 200-219V~/ 10A, 47-63Hz
    - 220-240V~/ 10A, 47-63Hz

    DC Output:
    - Max 1000W/ 100-127V~
    +12V/ 83A
    +12Vsb/ 3A
    - Max 1800W/ 200-240V
    +12V/ 148A
    +12Vsb/ 3A
    - Max 1968W/ 200-240V
    +12V/ 162A
    +12Vsb/ 3A
  • System Management
    Aspeed® AST2500 management controller
    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

    • Dashboard
    • JAVA Based Serial Over LAN
    • HTML5 KVM
    • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
    • Sensor Reading History Data
    • FRU Information
    • SEL Log in Linear Storage / Circular Storage Policy
    • Hardware Inventory
    • Fan Profile
    • System Firewall
    • Power Consumption
    • Power Control
    • LDAP / AD / RADIUS Support
    • Backup & Restore Configuration
    • Remote BIOS/BMC/CPLD Update
    • Event Log Filter
    • User Management
    • Media Redirection Settings
    • PAM Order Settings
    • SSL Settings
    • SMTP Settings
  • OS Compatibility
    Windows Server 2016 ( X2APIC/256T not supported)
    Windows Server 2019

    Red Hat Enterprise Linux 7.6 ( x64) or later
    Red Hat Enterprise Linux 8.0 ( x64) or later

    SUSE Linux Enterprise Server 12 SP4 ( x64) or later
    SUSE Linux Enterprise Server 15 SP1 ( x64) or later

    Ubuntu 16.04.6 LTS (x64) or later
    Ubuntu 18.04.3 LTS (x64) or later
    Ubuntu 20.04 LTS or later

    VMware ESXi 6.5 EP15 or later
    VMware ESXi 6.7 Update3 or later
    VMware ESXi 7.0 or later

    Citrix Hypervisor 8.1.0 or later
  • Weight
    Net Weight: 27.3 kg
    Gross Weight: 45.92 kg
  • System Fans
    8‎ x 80x80x38mm (16,300rpm)
  • Operating Properties
    Operating temperature: 10°C to 35°C
    Operating humidity: 8%-80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20%-95% (non-condensing)

    Ambient temperature limited to 30°C if using 280W CPU
  • Packaging Dimensions
    1‎167 x 700 x 309 mm
  • Packaging Content
    1‎ x H252-Z10
    4 x CPU heatsinks
    1 x Rail Kit
  • Part Numbers
    Barebone package: 6NH252Z10MR-00
    Spare parts:
    - Motherboard: 9MZ12HD0NR-00
    - Rail kit: 25HB2-AN6103-K0R
    - CPU heatsink: 25ST1-44320J-A0R
    - Back plane board: 9CBPH0O4NR-00
    - Power Supply: 25EP0-220008-D0S
    - Ring topology kit: 6NH262Z65SR-00-100 (optional extra)

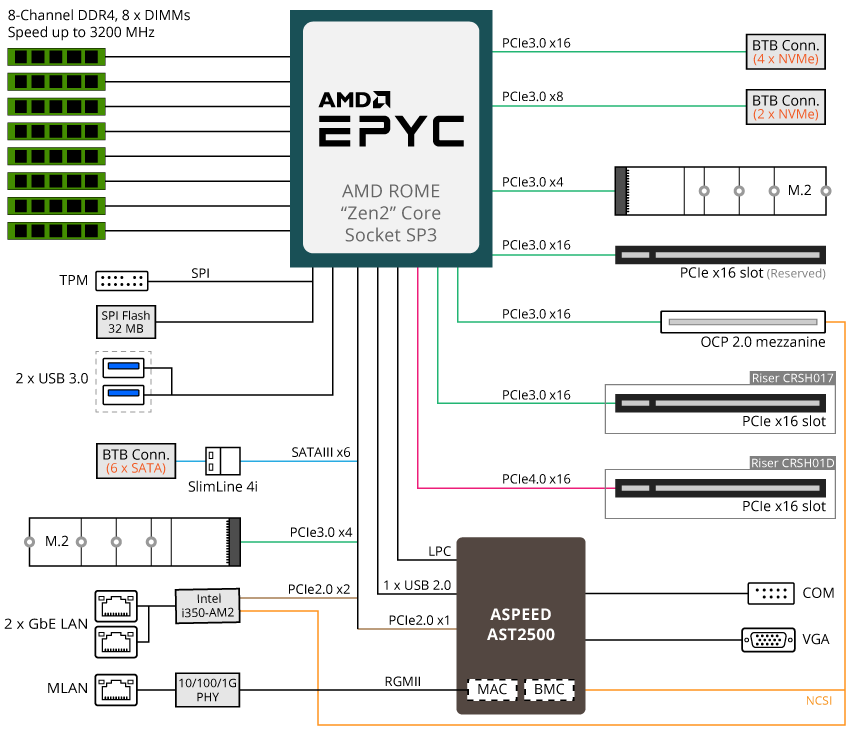

H252-Z10 System Block Diagram
