      MBD-X13DEI-B Supermicro
      MBD-X13DEI-B Supermicro
      MBD-X13DEI-B Supermicro
      MBD-X13DEI-B Supermicro

      MBD-X13DEI-B Supermicro

      La revue(0)
      925,00 $
      Prix HT
      Sur commande

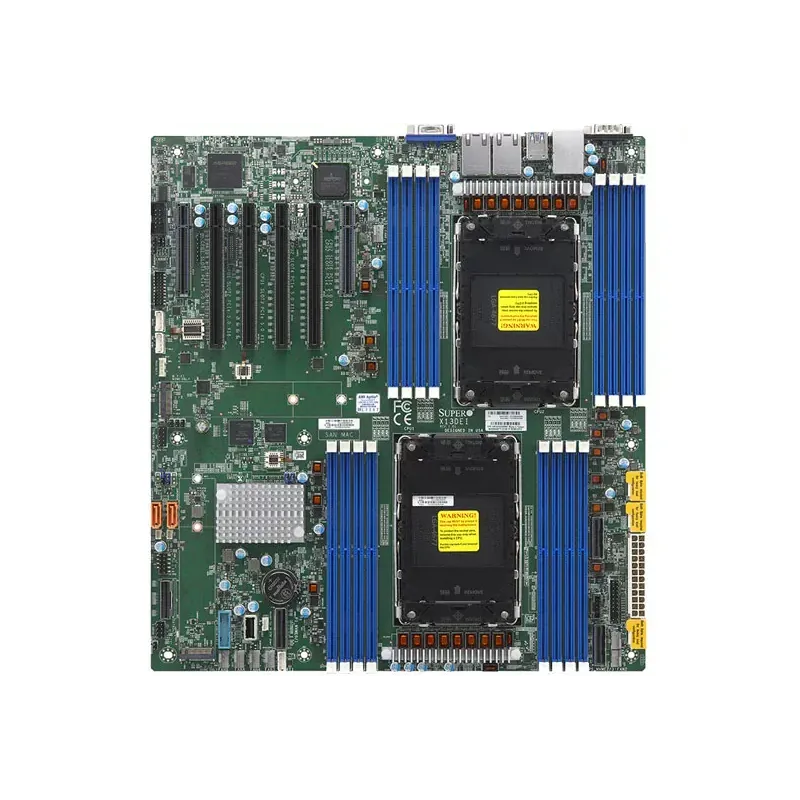

      X13 Mainstream DP MB with 16DIMM DDR5,BCM5720, AST2600, Bulk

      1. 4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
      2. Support CXL
      3. Intel® C741 Chipset
      4. Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
      5. 4 PCIe 5.0 x16
      6. 2 PCIe 5.0 x8
      7. Broadcom BCM5720 Dual ports 1G LAN
      8. 6 USB3.0 and 3 USB2.0
      9. 2 SATA DOM ports
      10. 2 M.2
      11. 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors
      12. 8 SATA3.0 ports
      Quantité :

      X13 Mainstream DP MB with 16DIMM DDR5,BCM5720, AST2600, Bulk

      Product SKUs
      MBD-X13DEI
      Physical Stats
      Form Factor
      • EATX
      Dimension
      • 12.1" x 13.05" (30.74cm x 33.15cm)
      Processor
      CPU
      Core
      • Up to 60 cores
      System Memory
      Memory Capacity
      • 16 DIMM slots
      • Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
      Memory Type
      • 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
      DIMM Sizes
      • 16GB, 32GB, 64GB, 128GB, 256GB
      • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
      Memory Voltage
      • 1.1V
      Error Detection
      • Corrects single-bit errors
      • Detects double-bit errors (using ECC memory)
      On-Board Devices
      Chipset
      • Intel® C741
      SATA
      • Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
      • Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
      IPMI
      • ASPEED AST2600 BMC
      Network Controllers
      • Dual LAN with Broadcom BCM5720 1GBase-T
      Input / Output
      SATA
      • 8 SATA3 (6Gbps) port(s)
      • 2 SATA3 (6Gbps) port(s)
      LAN
      • 1 RJ45 Dedicated IPMI LAN port
      • 2 RJ45 Gigabit Ethernet LAN ports
      USB
      • 6 USB 3 port(s) (4 rear; 2 via header)
      • 3 USB 2 port(s) (1 Type A; 2 via header)
      Video Output
      • 1 VGA D-Sub Connector port(s)
      Serial Port
      • 2 COM Port(s) (1 header; 1 rear)
      TPM
      • 1 TPM header
      Others
      • 3 MCIO PCIe 5.0 x8
      Expansion Slots
      PCIe
      • 2 PCIe 5.0 x8,
      • 4 PCIe 5.0 x16
      M.2
      • M.2 Interface: 2 PCIe 4.0 x2
      • Form Factor: 2280/22110
      • Key: M-Key
      System BIOS
      BIOS Type
      • AMI 32MB AMI UEFI
      BIOS Features
      • ACPI 6.4
      • SMBIOS 2.8/3.5
      • UEFI 2.8A
      • Plug and Play (PnP)
      • PCI FW 3.2
      Management
      Software
      Security
      Hardware
      • Trusted Platform Module (TPM) 2.0
      PC Health Monitoring
      Voltage
      • System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
      LED
      • UID/Remote UID
      • CPU / System Overheat LED
      Temperature
      • Monitoring for CPU and chassis environment
      • CPU thermal trip support
      • Thermal Monitor 2 (TM2) support
      • PECI
      FAN
      • 8x 4-pin fan headers (up to 8 fans)
      • Fan speed control
      • Overheat LED indication
      • 8x fans with tachometer monitoring
      Other Features
      • UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
      Operating Environment
      Operating Temperature Range
      • 10°C - 35°C (50°F - 95°F)
      Non-Operating Temperature Range
      • -40°C - 70°C (-40°F - 158°F)
      Operating Relative Humidity Range
      • 8% - 90% (non-condensing)
      Non Operating Relative Humidity Range
      • 5% - 95% (non-condensing)
      Supermicro
      MBD-X13DEI-B

      Fiche technique

      Processor brand
      Intel
      Processor Socket
      LGA4677
      Supported processor
      4th Gen Intel® Xeon® Scalable processors
      Number of processors
      2
      Génération
      X13

      Références Fabricants

      mpn
      MBD-X13DEI-B
