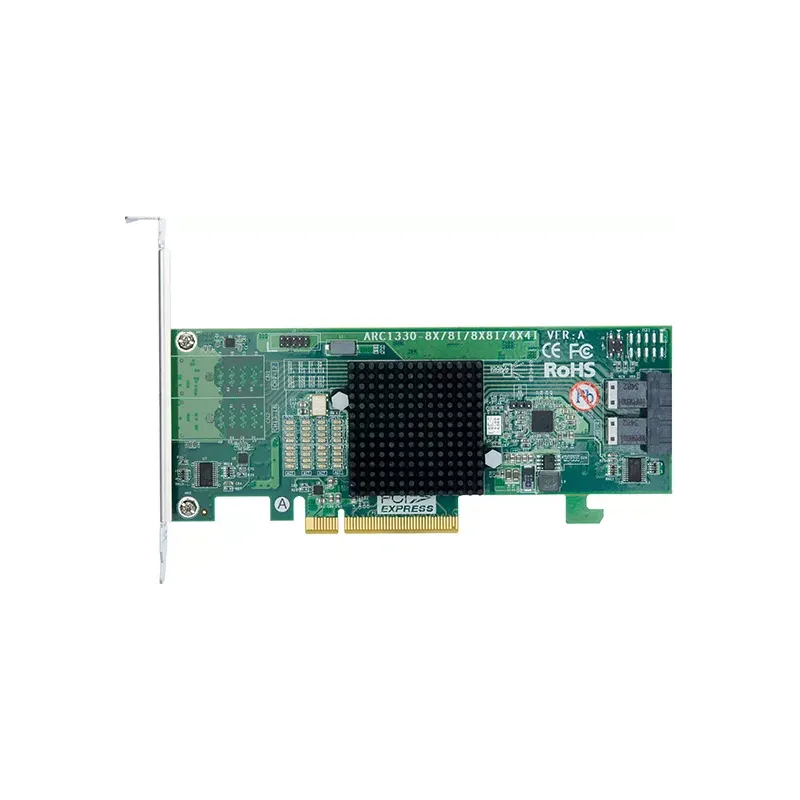

ARC-1330-8I - 8 ports HBA SAS/SATA (Max 128HD) PCIe3.0x8 2xSFF-8643
✵ PCIe 3.0 x8 lanes ( x8, x4, and x1 lane widths)
✵ Up to 12Gb/s transfer rates per SAS port
✵ Support 3.0, 6.0 and 12 Gb/s SAS and SATA link rates
✵ Connects to SAS and SATA HDDs, tape drives, SSDs
✵ Supports SSP, SMP, STP and SATA protocols
✵ Supports the SATA Protocol defined in the serial ATA, Revision 2.6 specification
✵ Address up to 128 total end-point devices via SAS expanders
✵ API library for customer to write monitor utility
✵ System status indicates through global HDD activity/fault header
PCIe 3.0 12Gb/s SAS Host Adapters
The ARC-1330 series is a low profile host adapter. It brings the fastest available connections to SAS data transfer rates of 12, 6, and 3 Gb/s per lane and SATA data transfer rates of 6 and 3Gb/s per lane interface storage on any computer, workstation and server with PCI Express 3.0 interface.
The adapters are backwards compatible with existing and future RAID, and expander solutions. It provides maximum bandwidth and I/O connectivity for high-end server-based storage systems with internal storage or when connecting to large-scale storage enclosures.
| ARC-1330 Series 12Gb/s SAS Host Adapter | |||
| ARC-1330-8i | ARC-1330-4i4x | ARC-1330-8x | |
| Host Bus Interface | x8 lane PCI Express® 3.0 | ||
| Ports | 8 x internal | 4 x internal & 4 x external | 8 x external |
| Drive Connectors | 2 x SFF-8643 | 1 x SFF-8643 & 1 x SFF-8644 | 2 x SFF-8644 |
| Data Transfer Rate | Up to 12Gb/s per port | ||
| I/O Controller | 88SE1485 | ||
| Devices Support | 128 X 3Gb/s, 6Gb/s and 12Gb/s SAS/SATA | ||
| Cable Support | Passive Copper | ||
| Physical Dimensions | MD2-Low Profile: 167(L) X 64(H) mm | ||
| Power Dissipation | Typical: 7.5W | ||
| Operating Temperature | 0 °C to 60 °C with 200 LFM airflow | ||
| Operating Humidity | 10% to 85%, non-condensing | ||
| Brackets | Full height and low profile | ||
| Key Features |
| ||
Operating Systems
- Microsoft Windows
- Red Hat, Centos, SUSE, Ubuntu
- XenServer
- FreeBSD ()
- macOS
Driver will be available in Q4/2021
Management Monitor
ArcSAP Storage Manager
- Graphical-based management utility
McSAS Utility
- Command-line interface
- API code support
McBIOS Configuration Utility
- Legacy configuration utility
- Flashable BIOS support
Monitors/Notification
- Enclosure management for internal port via LED and SES3/SGPIO
- Enclosure management for external port via SAS expander
ARC-1330-8I
